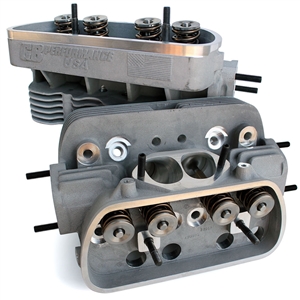

1549 CNC Super Street Eliminators (46 x 37.5) 94 bore w/VW650 Springs & Titanium Retainers

CNC Super Street Eliminators (46 x 37.5) 94 bore w/VW650 Springs & Titanium Retainers, CNC, Street eliminator



Alternative Views:


List Price: $2,187.95
Your Price: $1,899.95
You save $288.00!

Price with Selected Options: $1,899.95


Availability:: Usually Ships in 6 to 8 Weeks
Product Code: 1549


Valves*:


Shop Work:

*May require milling of first fin.
**Will require removal of first fin.
*may require removal of one fin

Qty:
Description


NEW CNC PORT DESIGN FOR 2017!

With 46 x 37.5mm Stainless Steel Valves, CNC Porting, VW650 Valve Springs, Titanium Retainers, & SUPERGRIP™ Valve Locks. 94mm Bore.

With the addition of a Rottler 5-Axis CNC Mill to CB's arsenal of machinery, we saw an opportunity to gain more airflow from our Street Eliminator line of cylinder heads. So our R&D department at CB set out to create all new CNC ports with greater air flow and port velocity.

The new CNC ported SUPER STREET ELIMINATORS are based on an incredibly strong casting, making them one of the most durable cylinder heads in the VW industry. With it's strength, the SUPER STREET ELIMINATOR is perfect for turbo use, but also makes for a very powerful running naturally aspirated head. Intake port volume was kept low for increased driveability (76cc for the 42 & 44mm intake valve, 86cc for the 46mm intake valve).

Horsepower levels exceeding 450hp are capable on boosted engines and over 240hp on naturally aspirated engines.

Available in 90.5/92 and 94mm bores with 42 x 37.5 and 44 x 37.5 valves, and 46 x 37.5 valves in 94mm bore only. The 46mm valve head shows included VW650 Springs & Titanium Retainers.

Sold as Pairs - Specify Camshaft & Rockers (Brand and Ratio) when ordering!

WARNING: Due to inconsistent advertised rocker arm ratios, it's imperative to check total lift and ensure you have a minimum of .050" from coil bind before final engine assembly.

Features
  • Flows At: 220 cfm @ 25" (@.600" lift)
  • Chamber Volume: 71cc
  • Intake Port Volume: 86cc

  • .100" - 57 cfm
  • .200" - 114 cfm
  • .300" - 160.5 cfm
  • .400" - 193 cfm
  • .500" - 209.5 cfm
  • .600" - 220 cfm
  • .630" - 224 cfm

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 2 Write a review.

  0 of 0 people found the following review helpful:

5 of 5 question April 27, 2023
Reviewer: BJH from TN
what cam would you recommend for these heads? i have a new set but need some guidance on using them for a build.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Super Street Eliminators March 7, 2022
Reviewer: Franck L from Buena Park, CA
These heads are absolutely insane! The quality, workmanship and performance is unsurpassed! The lead time is long but definitely worth the wait! Second best pair of heads I have next to my CB Comp Eliminators!

Was this review helpful to you?
