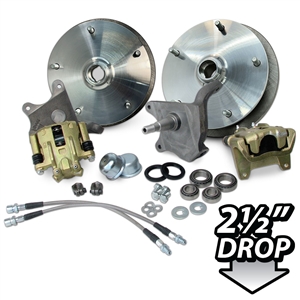

4192 Dropped Disc Brake Kit (Link Pin) WIDE 5

4192 Dropped Disc Brake Kit (Link Pin) WIDE 5



List Price: $895.95
Your Price: $644.95
You save $251.00!


Product Code: 4192

Click to view another Rotor Upgrade

Rotor Upgrade:


BRM Wheels:
Long Studs for BRM Wheels (1/2" OD)

Qty:
Description

WIDE 5 Dropped Spindle Disc Brake Kit for Type 1 Sedans feature the Early VW 5 Lug Pattern - CB's unique two piece Rotor/Hub design is what makes this kit possible.

The lug pattern is so large that an All-New Custom Rotor/ Hub Assembly had to be designed and engineered. The Hub itself is cast and machined from 356 Aluminum... Heat treated to a T6 rating, then secured to a machined SAE Certified Grey Iron Rotor.

All CB Dropped Spindles are Manufactured in the USA and CNC Machined from all-new castings with chromoly spindles - Strongest aftermarket spindle available anywhere, including welded ones! Steering geometry and ride quality are unaffected by the installation of our dropped spindles. The use of stock length shocks is also retained for a better ride. Our spindles are narrower than welded spindles! Designed for use with 50 and 60 series tires, and featuring a 2 1/2" drop and chromoly axles.

This all adds up to a perfect set of spindles that; drops your car a full 2 1/2", retains stock steering geometry and stock length shocks, improves handling, and uses the stock early VW 5 lug pattern.

Combine with one of our NEW Early VW 5 Lug Rear Disc Brake Kit, and you'll have one Unstoppable Performance Braking package. Enjoy the ride!

Bolt Pattern: WIDE 5 x 205mm



Kits include NEW Dropped Spindles, Rotors, Calipers, *S/S Braided Brake Lines, Spindle Clamp Nuts, Bearing Dust Covers, as well as all the necessary hardware, bearings, and seals required for installation.

Installation Notes
  1. Wide 5 Hubs use 12mm threads, AND increases tire offset by 7/8" on either side - CB recommends the use of a Narrowed Front Beam to reduce tire offset.
    *If you are using your stock front beam ask your CB salesperson about our XL front brake hoses.
> Longer Studs required for BRM Wheels (1/2" OD) <

Ball Joint Wide 5 Dropped Disc Brake Kit also available.

Replacement Disc Brake Pads for WIDE 5 Front Disc Brake Kits are now available.

Disc Brake Master Cylinders available here.



NOTE: Vehicles with four wheel disc brakes using a 67-later master cylinder are recommended to install a 4 lb. Residual Pressure Valve.

Additional Freight Charge May Apply. If so, we will contact you.
Features
  • NEW Dropped Spindles (x2)
  • 5 Lug Rotors/Hubs (x2)
  • Calipers (57996 L/R)
  • S/S Braided Brake Lines (#4320)
  • Ball Joint Spindle Clamp Nuts (#4346)
  • Bearing Dust Covers (#4343)
  • Ball Joint Wheel Bearing Thrust Washer (#4350)
  • Hex Head Bolts / 10mm Washers (4 each)
  • Bearing and Seal Installation Kit (#4290)

Accessory Parts
4188 Wide 5 Front Caliper (CB 4192/4194 Driver side) or (CB 4201/4202 Passenger side) 4646 Disc Brake Pad Replacements for CB Wide 5 Front Disc Brakes using CB Brand Calipers (set of 4) 4189 Wide 5 Front Caliper (CB 4192/4194 Passenger side) or (CB 4201/4202 Driver side)
Your Price: $62.95

Add
Your Price: $24.95

Add
Your Price: $62.95

Add
4188 Wide 5 Front Caliper (CB 4192/4194 Driver side) or (CB 4201/4202 Passenger side) 4646 Disc Brake Pad Replacements for CB Wide 5 Front Disc Brakes using CB Brand Calipers (set of 4) 4189 Wide 5 Front Caliper (CB 4192/4194 Passenger side) or (CB 4201/4202 Driver side)

Average Customer Review: 5 of 5 Total Reviews: 2 Write a review.

  0 of 0 people found the following review helpful:

Stops on a dime now. April 10, 2018
Reviewer: Tom Trouskie from OREGON, USA
I like this kit so much that I ordered the rear disc kit from CB for my '67 that stops on a dime now.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

Wide five 4192 kit. September 1, 2015
Reviewer: Jon from Polson, MT United States
Installation was straight forward. No problems at all. I upgraded the rotor disks, to help keep rust away. Very impressed with the new stopping power. I upgraded the master cylinder as suggested.

Replaced both the link and king pins, some may want to get professional services to do them .

Great product and service.

Was this review helpful to you?
