6440 Single Weber 48 IDF Low Profile Kit

Single Weber 48 IDF Low Profile Kit



Alternative Views:


List Price: $872.95
Your Price: $758.95
You save $114.00!

Price with Selected Options: $758.95


Product Code: 6440

Click to view another Air Filter Top

Air Filter Top:


Qty:
Description

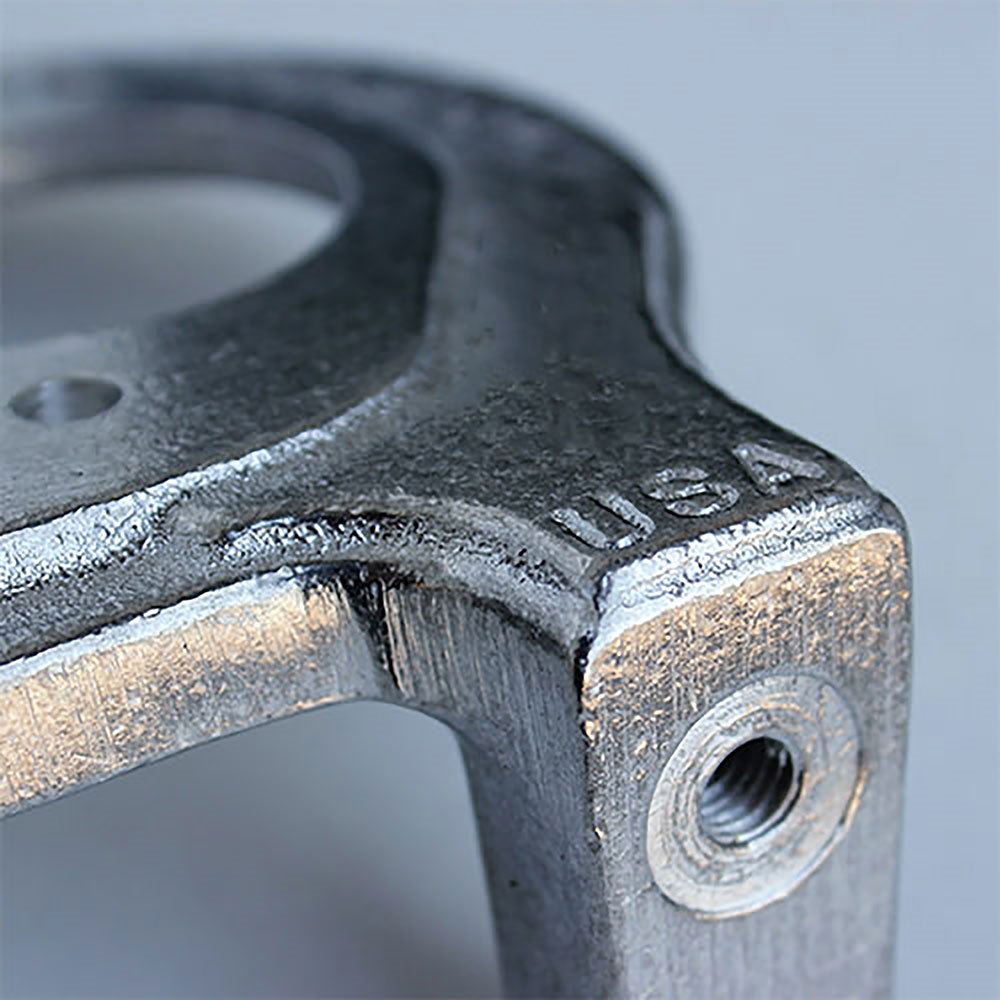

The Low Profile Center Section Manifold is manufactured from 356 aluminum and features full ascent heat risers to provide cold weather carburetor heat. The low height provides "Under the Deck" installation of 40, 44, and 48mm IDF Carbs. CB's exclusive cable pull linkage is included in each kit.

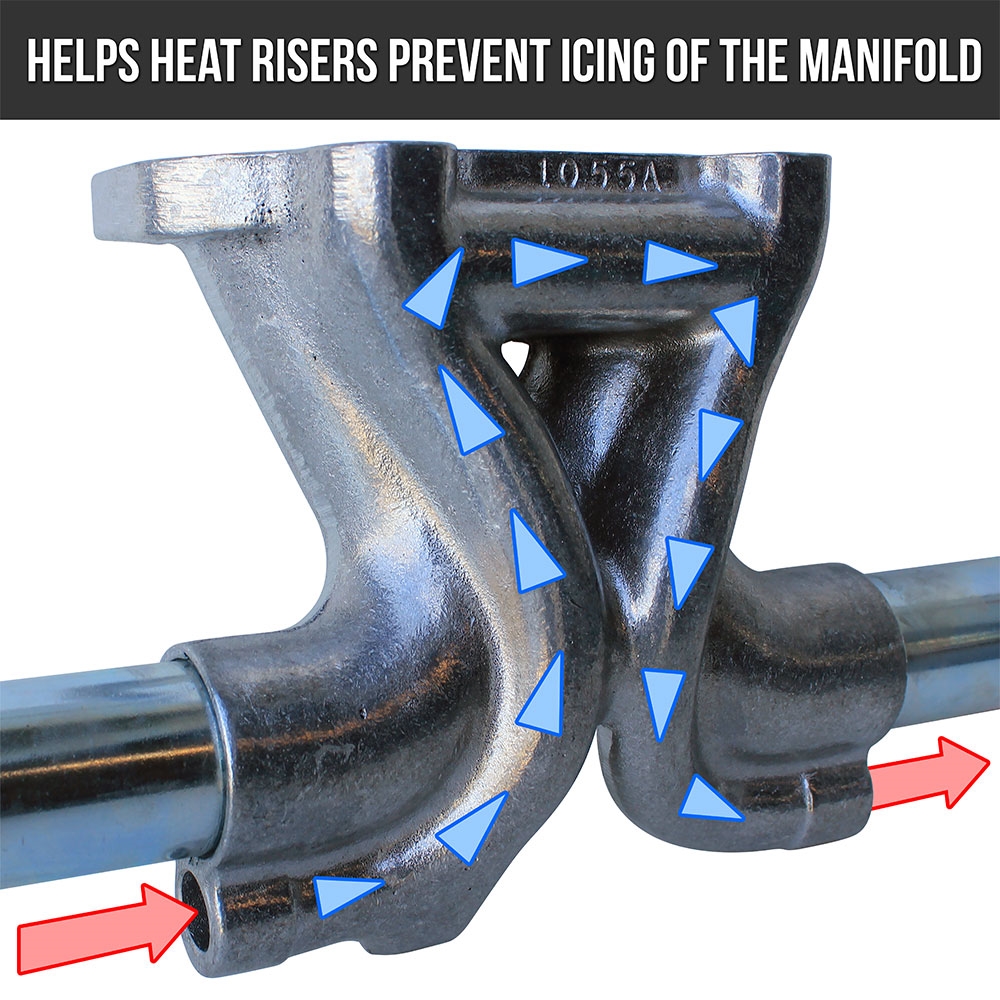

Fits under the deck of a VW Sedan to give your engine the breathing space needed for power and custom looks. The aluminum Low Profile Manifold is provided with heat risers to help control manifold frosting in cold weather. It's easy to install and bolts directly to the engine case for maximum support. CB's original sheathed cable pull linkage is included in each kit to provide smooth crisp throttle action.

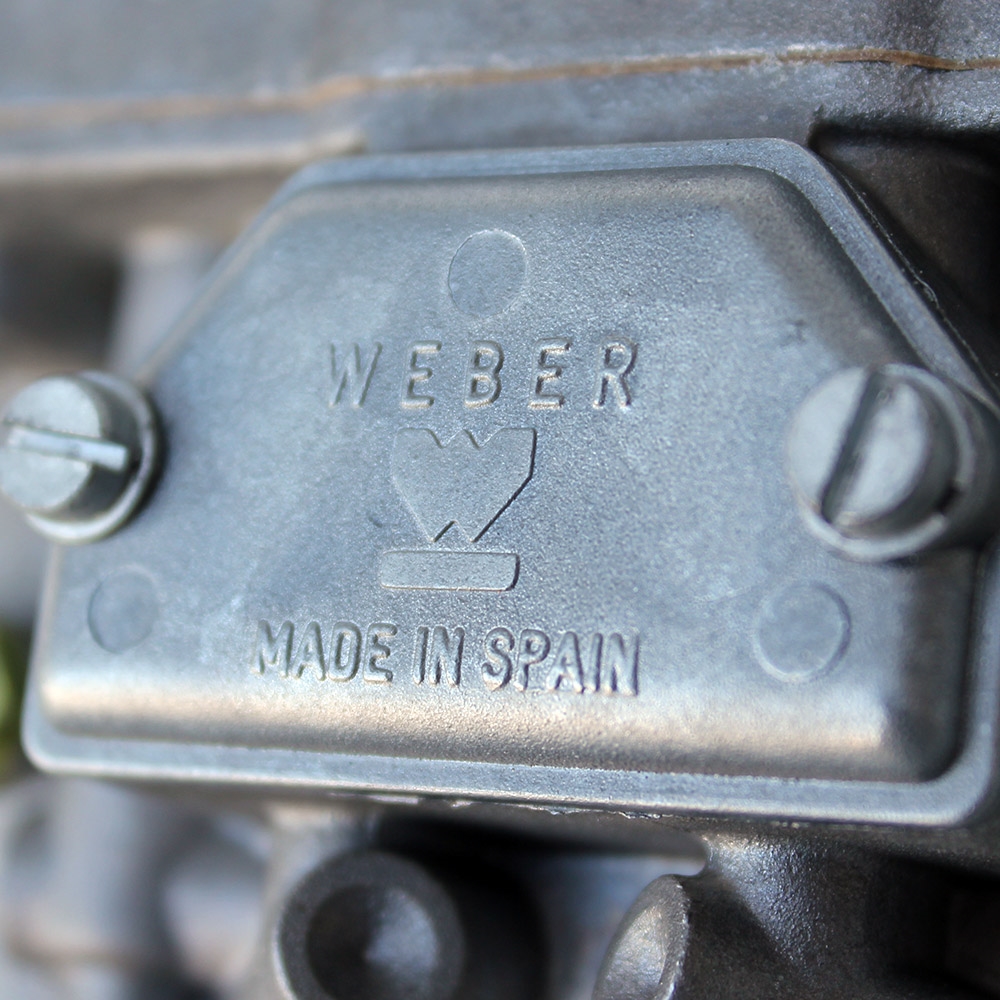

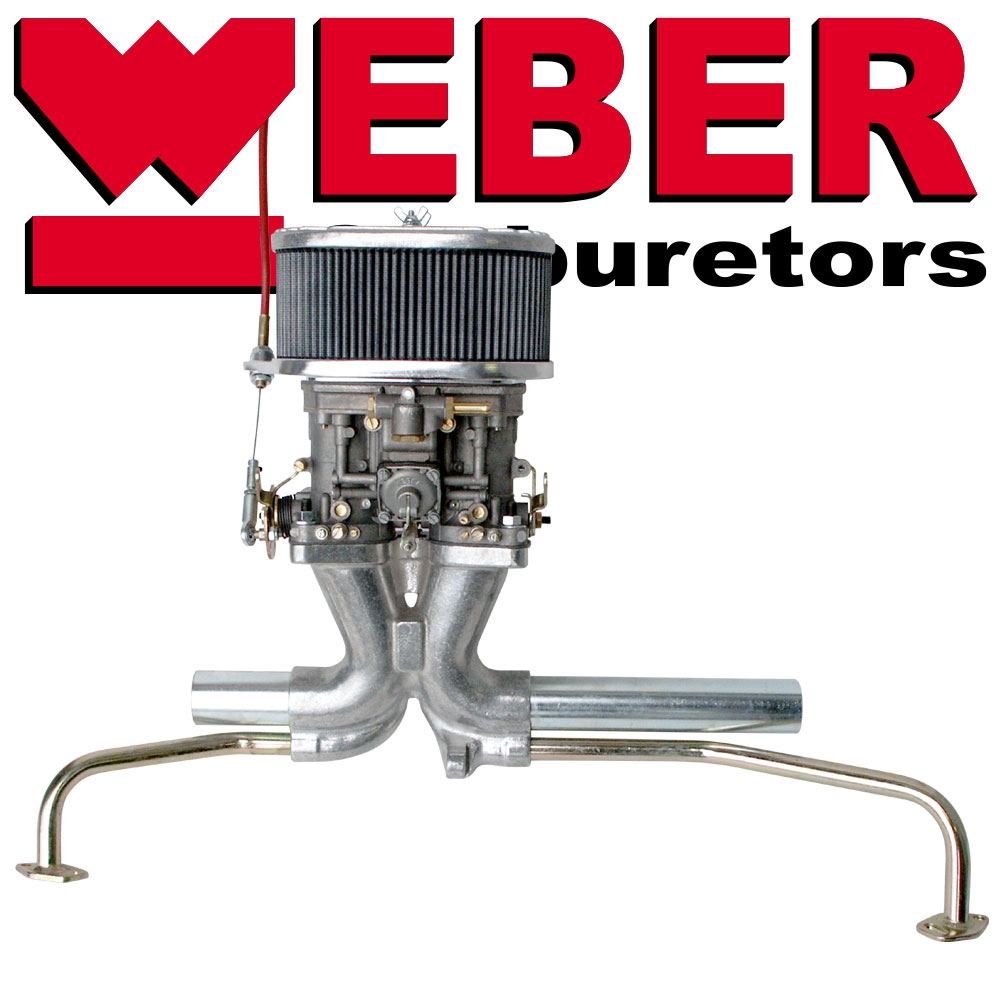

You can choose from 40, 44, or 48mm Weber IDF Carburetors. Each size fits under the engine deck lid without using hood stand offs. Low Profile Single Kits can also be used on open framed off road cars where the full benefit of the built-in heat risers can be experienced. Each Low Profile Single IDF Kit is shipped complete with the IDF of your choice, aluminum manifold, air filter and sheathed cable pull linkage.



Features
  • Air Correction Jet: 1.80
  • Emulsion Tube: F-2
  • Main Jet: 1.70 (drilled)
  • Pump Jet: .50 (uses .0 bypass)
  • Idle Jet: .65
  • Venturi: 40mm
