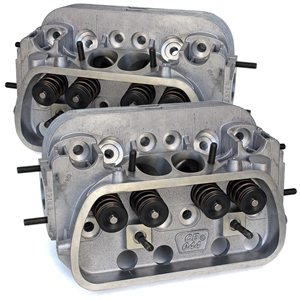

044™ CNC Wedge Ports (specify size)

044â„¢ CNC Wedge Ports (specify size)



Alternative Views:


List Price: $1,258.95
Your Price: $1,211.95
You save $47.00!

Price with Selected Options: $1,211.95


Availability:: Usually Ships in 6 to 8 Weeks
Product Code: CNCWEDGEPORTS


Size*:


Valves*:


Springs:


Retainers:


Shop Work:

*May require milling of first fin.
**Will require removal of first fin.
*may require removal of one fin

Qty:
Description

With Stainless Steel valves, CNC Porting, Dual Hi-Rev Springs, Chromoly Retainers, and SUPERGRIP™ Valve Locks.

This is one of our favorite heads! The Wedge Port uses a 44mm intake valve. The small 76cc intake port flows 209 CFM and can produce well over 210 horsepower on N/A engines. Great head for hot street engines due to the high port velocity. A great head for turbo engines.

044™ CNC Wedge Ports are available in 90.5/92mm and 94mm Bore.

Heads are sold as a Pair

-
Specify Camshaft & Rockers (Brand and Ratio) when ordering! (Sold Separately)

WARNING: Due to inconsistent advertised rocker arm ratios, it's imperative to check total lift and ensure you have a minimum of .050" from coil bind before final engine assembly.



90.5/92mm Wedge Ports - Same head as the award-winning 94mm Bore Wedge Port, but with a 66cc Chamber Volume. Valve sizes of 42x37.5 and 44x37.5 available. For High lift applications, the 650 Valve Spring option is available allowing Valve lifts up to .630" lift.
Features
  • 12mm 3/4" Reach Spark Plug Holes
  • 42mm x 37.5mm SUPERGRIP 214N Single Groove S/S Valves with Stellite Tips (1432 & 1410)
  • 44mm x 37.5mm SUPERGRIP 214N Single Groove S/S Valves with Stellite Tips (1411 & 1433)
  • SUPERGRIP Chromoly Valve Spring Retainers
  • SUPERGRIP Single Groove Valve Locks
  • Performance 4 Angle Valve Job (30, 45, 60 & 75) on seats
  • Manganese Bronze Racing Valve Guides
  • Tungsten Carbide Alloy Valve Seats
  • Dual Hi-Rev Chrome Silicon Valve Springs
