New!  1130 Pro-Flanged Crank - 84mm Stroke - Chevy Rod Journal

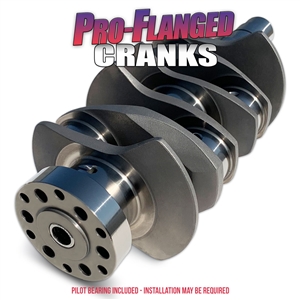

1130 Pro-Flanged Crank - 84mm Stroke - Chevy Rod Journal



Alternative Views:


List Price: $472.95
Your Price: $409.95
You save $63.00!

Product Code: 1130
Qty:

Description

Pro-Flanged Crankshafts are manufactured using an E4340 Chromoly multi-struck forging. The forging is CNC machined to utilize Type-4 VW main bearings and Chevy 2" rod bearings. We treat the Pro-Flanged Crankshafts with white nitride for extreme durability. The Pro-Flanged Crankshaft is shot-peened to relieve stress, and micro polished on all of the bearing surfaces. Also available in 86mm Stroke.

The flywheel is locked in place with 6 hardened dowel pins and 6 7/16-20 12 point ARP Pro Bolts, sold separately.

Match the CB Pro-Flanged Crankshafts with our industries first Pro-Flanged Main Bearings for a winning combination.

Finally... Professional engine builders or the do-it-yourself builder at home can easily assemble a performance flanged crank engine. No more hassles of expensive custom-made bearings and thrust conversions.

NOTE: Prior to installation of CB's Pro-Flanged Main Bearings, your engine case will need to be machined for bearing tangs and flanged crank rear main seal. CB Performance offers these services for new engine cases, Aluminum or Magnesium.

Complete Flanged Crank System:
Pro-Flanged Main Bearings
Pro-Flanged Flywheel

Rear Main Seal
ARP Flywheel Bolts
Dowel Pins
Features
  • Forged from one piece Chromoly billet
  • Cross groove oiling holes
  • Micro polished bearing journals
  • Dynamically balanced
  • Bearing surfaces are nitrided
  • Magnafluxed

Accessory Parts
1845 Pro-Flanged Main Bearings - Type-1 1355 ARP Pro Flanged Flywheel Bolts 1415 Dowel Pins - 8mm Extra Length Double Duty (set of 8) 1947 Rear Main Seal - Flanged Crank
