1153 Super Race Crank - 78.4mm Stroke - VW Journals

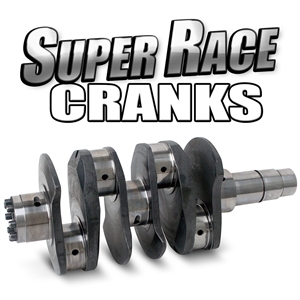

Super Race Crank

List Price: $404.95
Your Price: $350.95
You save $54.00!


Product Code: 1153
Qty:

Description

Unleash the full potential of your engine with a CB Performance SUPER RACE Crankshaft. Crafted from a premium high-tensile E4340 Chromoly Steel forging, a strong and durable alloy known for its excellent strength-to-weight ratio, resistance to wear, fatigue, and high impact. Progressive dies are used in the forging process to assure a grain flow that follows the shape of the finished crankshaft.

Engineered with cutting-edge CNC machining, each crankshaft undergoes micro-polishing and nitriding to ensure a smooth, hardened surface that resists wear and fatigue under extreme conditions. Counterweighted for reduced oil foaming, vibration and crank flex, it provides smoother operation and enhanced engine longevity, even at high RPMs. Available in a range of stroke lengths from 78.4mm to 86mm—this crankshaft lets you customize your displacement for maximum torque and horsepower. Choose between standard VW rod journals or Chevy-sized journals to match your preferred connecting rods.

Additional features include shot peening for improved fatigue resistance, magnafluxing to guarantee flaw-free construction, and pre-installed flywheel dowel pins for hassle-free assembly. Whether you’re building a race-ready beast or a street-tuned powerhouse, a CBP SUPER RACE Crank is your foundation for reliable, high-RPM performance!


NOTE: CBP Crankshafts are factory balanced, but once a flywheel and clutch pressure plate are installed, the entire assembly should be re-balanced prior to installation. Ask your salesperson for additional information and services.

Features
  • Forged from one piece Chromoly billet
  • Cross groove oiling holes
  • Extra long 8mm hardened crank/flywheel dowels
  • Uses standard or light weight flywheels
  • Micro polished bearing journals
  • Dynamically balanced
  • Bearing surfaces are nitrided
  • Magnafluxed

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 1 Write a review.

  12 of 12 people found the following review helpful:

5 of 5 Amazing Quality March 23, 2020
Reviewer: Pasquale Popolizio from New Jersey
This crank is beautiful,  I got it to fit in a stock case with 5.5" unitech rods.  I only needed to clearance some grooves and support material on the tops and bottoms of the cylinder holes in the case with a hand grinder, as well as the center cam journal.  It took a few hours, but I don't have any vw machine shops nearby, and it turned out great!  Because unitech rods are clearanced already,  the top of the case was left alone.  I did have some trouble getting my woodruff keys to fit though, I had to sand them down a few thousandths to get them to fit.  Nevertheless,  this crank is amazing for the price!  Don't forget to remove the small allen set-screws on the crank, clean them, and loctite them back in place!

Was this review helpful to you?
