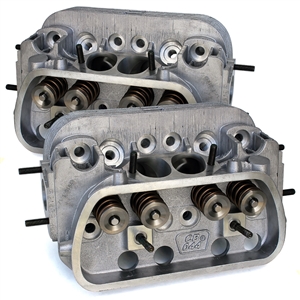

1409 044™ CNC Ultra Wedge Ports - VW650 Valve Springs & Titanium Retainers (46 x 37.5) 94 Bore

1409 044â„¢ CNC Ultra Wedge Ports - VW650 Valve Springs & Titanium Retainers (46 x 37.5) 94 Bore



Alternative Views:


List Price: $1,365.95
Your Price: $1,191.95
You save $174.00!

Price with Selected Options: $1,191.95

Availability:: Usually Ships in 3 to 4 Weeks
Product Code: 1409


Valves*:


Shop Work:

*May require milling of first fin.
**Will require removal of first fin.
*may require removal of one fin

Qty:
Description

With 46 x 37.5mm Stainless Steel valves, CNC Porting, VW650 Valve Springs, Titanium Retainers, and SUPERGRIP™ Valve Locks. 94 Bore.

The GodFather of all CNC heads. Flowing over 230 CFM, it makes power most race-only heads are capable of! Larger 89cc intake ports allow for extremely high RPM potential & power levels exceeding 240 horsepower on N/A engines. Great for extremely hot street cars, and drag cars.

The 044™ Ultra Wedge Port Head is the ultimate in flow and velocity. The intake valve has been increased to 46mm, resulting in 10% more flow than the standard Wedge Port. The Ultra Wedge Port uses the exclusive CB VW650 Valve Spring along with SuperGrip Single Groove Valve combination, which allows lift of up to .630" with .050 left before coil bind! The combustion chamber has also been redesigned for better quench. Chamber volume is now 69cc, perfect for turbo use, if desired.

Sold in Pairs - Specify Camshaft & Rockers when ordering!

Features
  • 12mm 3/4" Reach Spark Plug Holes
  • 46mm x 37.5mm SUPERGRIP 214N Single Groove S/S Valves with Stellite Tips
  • SUPERGRIP Chromoly Valve Spring Retainers
  • SUPERGRIP Single Groove Valve Locks
  • Performance 4 Angle Valve Job (30, 45, 60 & 75) on seats
  • Manganese Bronze Racing Valve Guides
  • Tungsten Carbide Alloy Valve Seats
  • Dual Hi-Rev Chrome Silicon Valve Springs
