New!  1445 044™ CNC Street Fighter - VW650 Valve Springs & Titanium Retainers (46 x 37.5) 94 Bore

1445 044â„¢ CNC Street Fighter - VW650 Valve Springs & Titanium Retainers (46 x 37.5) 94 Bore



Alternative Views:


List Price: $1,465.95
Your Price: $1,291.95
You save $174.00!

Price with Selected Options: $1,291.95

Availability:: Usually Ships in 6 Weeks
Product Code: 1445


Valves*:


Shop Work:

*May require milling of first fin.
**Will require removal of first fin.
*may require removal of one fin

Qty:
Description

With 46 x 37.5mm Stainless Steel valves, CNC Porting, VW650 Valve Springs, Titanium Retainers, and SUPERGRIP™ Valve Locks - 94 Bore.

After many years of success with our 044™ CNC Ultra Wedge Port heads, it was time to challenge ourselves to make it even better.

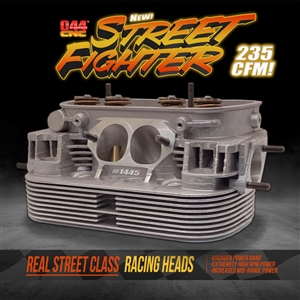

Introducing the new 044™ CNC Street Fighter - Developed to dominate street class racing, such as the 'Real Street' drag racing class that runs in Southern California's 'Drag Day' and 'Bug-In' events.

The 044™ CNC Street Fighter Head is the ultimate in flow and velocity. Flowing over 230 CFM, it makes power most race-only heads are capable of! Larger 90cc intake ports allow for extremely high RPM potential & power levels exceeding 240 horsepower on N/A engines.

The port was designed with a smaller intake throat percentage - 89% compared to its predecessor, the Ultra Wedge head at 92%. The smaller throat of the Street Fighter increases mid-range power, but still retains extremely high RPM power. This broader power band is ideal for heavier cars. Valve size is 46mm intake and 37.5mm exhaust.

Each Street Fighter head is given a 4 angle valve job - 35 degree top cut, 45 degree seat angle, 60 degree mid cut, and 75 degree lower cut for optimum flow. Each intake valve uses a 30 degree back cut to help increase flow at low and mid valve lifts.

Equipped with our VW-650 Valve Springs along with SuperGrip Single Groove Valve combination and Titanium Retainers, which allows lift of up to .630" with .050 left before coil bind! The Street Fighter is ready to do some damage on the street or strip!

Specify Camshaft & Rockers (Brand and Ratio) when ordering! - (Sold Separately)

WARNING: Due to inconsistent advertised rocker arm ratios, it's imperative to check total lift and ensure you have a minimum of .050" from coil bind before final engine assembly.

Features
  • 12mm 3/4" Reach Spark Plug Holes
  • 46mm x 37.5mm SUPERGRIP 214N Single Groove S/S Valves with Stellite Tips
  • SUPERGRIP Chromoly Valve Spring Retainers
  • SUPERGRIP Single Groove Valve Locks
  • Performance 4 Angle Valve Job (35, 45, 60 & 75) on seats
  • Manganese Bronze Racing Valve Guides
  • Tungsten Carbide Alloy Valve Seats
  • Dual Hi-Rev Chrome Silicon Valve Springs
