1493 VW650 Dual Valve Springs (set of 8)
VW650 Dual Valve Springs

List Price: $152.95
Your Price: $132.95
You save $20.00!


Product Code: 1493
Qty:

Description

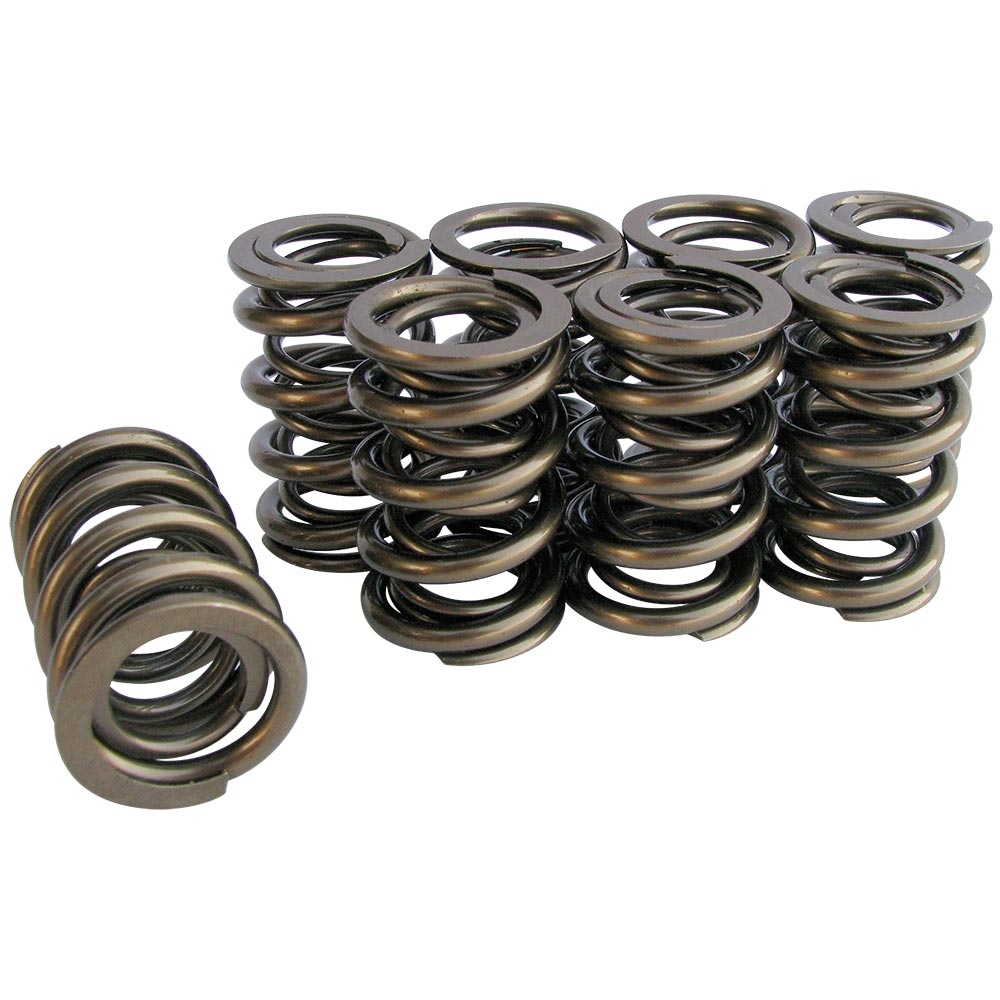

The CB Performance VW650 Dual Valve Springs are engineered for high-performance engines, designed to rev up to 8500 RPM. These top-tier dual springs are a drop-in upgrade for heads machined to fit VW diameter dual springs.

Crafted from NASCAR-grade proprietary material, they offer unsurpassed high-cycle fatigue life, ensuring extreme endurance and reliable valve control while minimizing valve float. The springs undergo extensive surface finishing, including nitriding, polishing, heat set, and micro shot peening, making them ideal for both street and strip applications.

With an installed height of 1.540", they provide 160 lbs. of seat pressure, and at .630" lift, they deliver an open load of 420 lbs.. If your heads are properly set up, these springs allow you to run up to .630" lift, making them a reliable choice for demanding drivers.

Upgrade your engine’s potential with the CB Performance VW650 Dual Valve Springs - built for endurance, precision, and power!

NOTE: For optimal performance, pair with CB Performance Titanium Retainers and Chromoly Super Duty Pushrods. Always verify spring clearance to prevent coil bind, especially with high-lift cams (e.g., Eagle 2289/2298 with 1.4 rockers). Professional installation and precise measurements are recommended to ensure safe operation.

Installed Height
(Valve Closed)
Recommended Lift Valve Spring Load
Minimum Recommended
Installed Height

1.510"
.600" 174 lbs.
1.520" .610" 170 lbs.
1.530"
.620" 164 lbs.
Minimum Recommended
Installed Height

1.540"
.630" 160 lbs.




Accessory Parts
1524 Titanium Retainers for use with SUPERGRIP™ Valves and Locks (set of 8) 1533 SUPERGRIP™ - Single Groove Valve Locks (set of 16) 1532 SUPERGRIP™ - Chromoly Retainers for Single Groove Valve Locks (set of 8)
