4177 Dropped Disc Brake Kit (Ball Joint) with 5 Lug Porsche Alloy bolt pattern

4177 Dropped Disc Brake Kit (Ball Joint) with 5 Lug Porsche Alloy bolt pattern



List Price: $714.95
Your Price: $619.95
You save $95.00!

Price with Selected Options: $619.95

Product Code: 4177


Add-on Items:


Qty:
Description

The Rotors are an all new design with a CNC machined 6061 billet hub, black cad-plated cross-drilled & slotted rotor, with Sway-A-Way 14mm studs pressed in & ready to go. Fits 5 x 130mm Porsche Alloy Bolt Pattern.

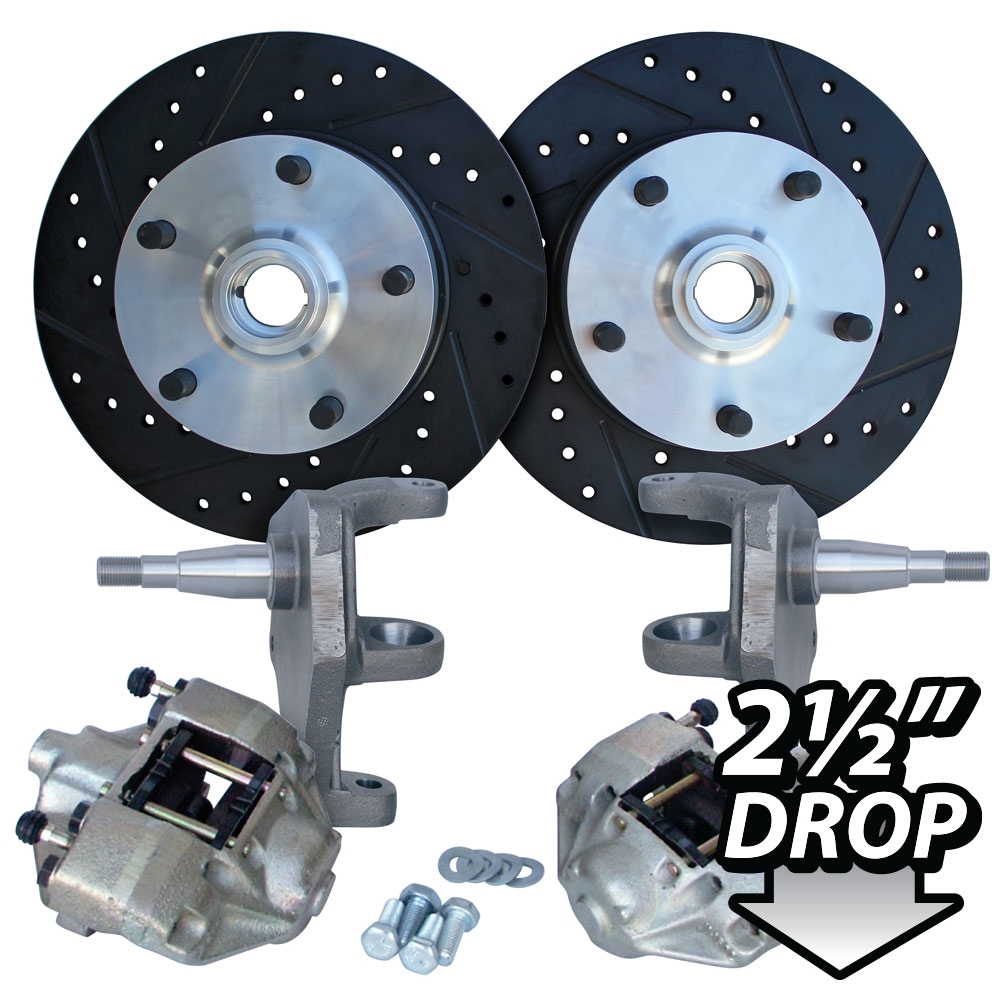

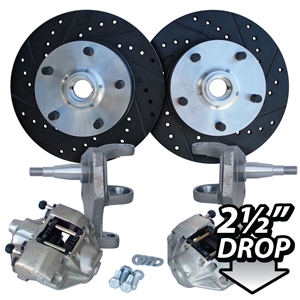

This kit includes NEW Dropped Spindles, billet hubs, cad-plated drilled & slotted rotors, calipers, & mounting bolts. We recommend a #4290 Bearing & Seal Installation Kit, which can be added-on using the drop-down menu above. Disc Brake Master Cylinders are also available.

Installation Notes
  1. Spindles increase tire offset by 3/8" on either side.
    If needed, CB recommends the use of a Narrowed Front Beam to reduce tire offset.
  2. 5 x 130mm Porsche Bolt Pattern.
  3. Rotors use 14mm threads.



NOTE: Vehicles with four wheel disc brakes using a 67-later master cylinder are recommended to install a 4 lb. Residual Pressure Valve.

'66-67 requires the use of 1968-later inner wheel bearings (#311-405-625b).

'66-68 requires the use of 1969-later Tie Rod Ends (#4082, #4083).

Additional Freight Charge May Apply. If so, we will contact you.
