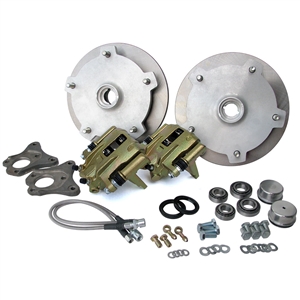

4202 Disc Brake Kit (Link Pin) WIDE 5 Bolt-On

4202 Disc Brake Kit (Link Pin) WIDE 5 Bolt-On



List Price: $674.95
Your Price: $585.95
You save $89.00!

Price with Selected Options: $585.95

Product Code: 4202

Click to view another Rotor Upgrade

Rotor Upgrade:


BRM Wheels:
Long Studs for BRM Wheels (1/2" OD)

Qty:
Description

Wide 5 Bolt-On Front Disc Brake Kit for Type 1 Sedans feature the Early VW 5 Lug Pattern - CB's unique two piece Rotor/ Hub design is what makes this kit possible.

The lug pattern is so large that an All-New Custom Rotor/ Hub Assembly had to be designed and engineered - The Hub itself is cast and machined from 356 Aluminum... Heat treated to a T6 rating, then secured to a machined SAE Certified Grey Iron Rotor.

Combine with one of our NEW Early VW 5 Lug Rear Disc Brake Kit and you'll have one Unstoppable Performance Braking package. Enjoy the ride! Bolt Pattern: WIDE 5 x 205mm



Kits include NEW Rotors, Calipers/ Brackets (and mounting hardware), S/S Braided Brake Lines, *Bearings, and Seals.

Installation Notes
  1. Wide 5 Hubs use 12mm threads, AND increases tire offset by 7/8" on either side - If needed, CB recommends the use of a Narrowed Front Beam to reduce tire offset.
  2. This kit will NOT work with Lowered Spindles.
> Longer Studs required for BRM Wheels (1/2" OD) <







NOTE: Vehicles with four wheel disc brakes using a 67-later master cylinder are recommended to install a 4 lb. Residual Pressure Valve.


Additional Freight Charge May Apply. If so, we will contact you.
Features
  • Special Link Pin WIDE 5 Rotors (1 pair)
  • Calipers (#4188 & #4189) (1 pair)
  • Caliper Brackets (#3897 & #3898)
  • Hex Head Bolts (10 x 25 - 1.25 thread) (x4)
  • Hex Head Bolts (10 x 20 - 1.5 thread) 15mm hex head (x6)
  • 10mm Wavy Washers (x10)
  • Bearing Kit (Special Link Pin)
  • S/S Braided Brake Lines (special)
  • Billet Dust Caps
  • Dust Cap Set Screws (6-32 x 3/16 socket set screw cup point) (x4)

Accessory Parts
4291 Replacement Bearing and Seal Installation Kit (for 4202 kit) 4188 Wide 5 Front Caliper (CB 4192/4194 Driver side) or (CB 4201/4202 Passenger side) 4189 Wide 5 Front Caliper (CB 4192/4194 Passenger side) or (CB 4201/4202 Driver side)
Your Price: $97.95

Add
Your Price: $62.95

Add
Your Price: $62.95

Add
4291 Replacement Bearing and Seal Installation Kit (for 4202 kit) 4188 Wide 5 Front Caliper (CB 4192/4194 Driver side) or (CB 4201/4202 Passenger side) 4189 Wide 5 Front Caliper (CB 4192/4194 Passenger side) or (CB 4201/4202 Driver side)

Average Customer Review: 3 of 5 Total Reviews: 1 Write a review.

  0 of 0 people found the following review helpful:

Front disc brakes May 4, 2019
Reviewer: Shayne from Vancouver, WA
Good looking product! Struggled a bit with this product. My 1958 Vw bug front drum brakes did not use this spindle spacer that this kit doesn’t come with. I had my link pins rebuilt prior to using this disc brake kit, and my spindle install kit came with this spacer. It took a couple of installation attempts to make this work. Also one of the cast backer plates that holds the caliper was slightly off.  This caused the bolts to not line up correctly. A little grinding and it all worked out.
