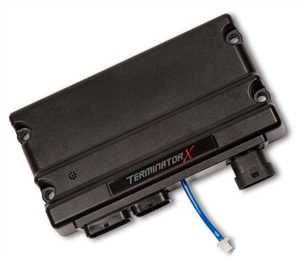

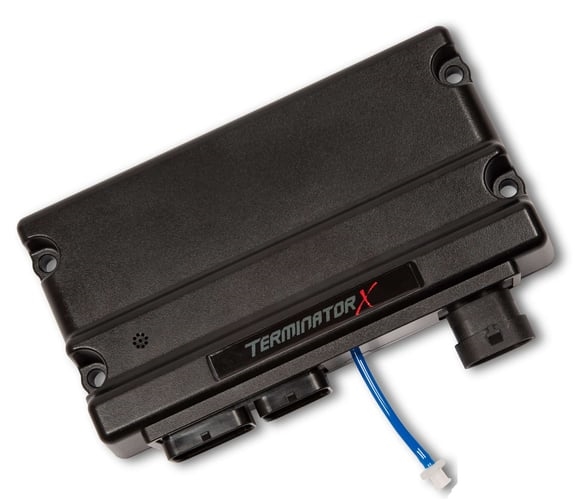

7077 CB's Gen4 EFI - Replacement ECU

7077 CB's Gen4 EFI - Replacement ECU



List Price: $1,195.95
Your Price: $995.95
You save $200.00!

Product Code: 7077
CALL TO ORDER

Description

ECU only! NOT A COMPLETE KIT!

Features
  • ECU features:
  • 32bit processor, Marine grade locking connectors, 4mb of internal storage
  • 8 High or Low impedance Injector drivers.
  • 4 On board Direct Fire Ignition Drivers. Each driver can fire up to 2 coils.
  • 8 Smart Coil drivers
  • VR Crank and Cam Input (36-1 Trigger Wheel supported for crankshaft position)
  • Hall Effect Crank and Cam Input
  • Coil Negative input (also accepts this input as a ignition timing control through points or points replacement modules)
  • 8 Analog 0-5 volt inputs
  • 8 Digital Inputs
  • On Board 2.5 Bar MAP sensor or external 1,2,3 or 5 Bar MAP input
  • On Board Barometer sensor (Adjusts tune automatically for altitude)
  • 4 On Board Wideband O2 sensors
  • 4 On Board K-Type EGT controllers
  • H-Bridge Idle Air Control
  • Gas, Methanol or E-85 Compatible (AFR displayed in gasoline scale)
  • Boost Controller
  • Water/Meth Controller
  • 6 Outputs (1-amp max each)
  • Rev-Limiter and 2-Step Rev Limiter
  • 2 stage Dry Nitrous Control (Feature Added on 4/30/15!)
  • Lean A/F protection (Feature Added on 4/30/15!)

  • Software Features:
  • 20x20 Fuel, Ignition, Air Fuel Ratio, High/Low learn limits, Water/Meth Table Sizes.
  • Speed Density or Alpha-N configurable load boundaries
  • Pulse Width or VE based Fuel Table tuning strategies
  • Individual Ignition coil trim
  • Individual injector trim, including Idle – Midrange and wide open throttle
  • Assisted tuning strategy via closed loop and learning, user selectable
  • Adjustable Spark Dwell based on load and Temperature
  • Temperature based timing compensation
  • Internal data logger allows you to export data after run or tuning session
  • Turbo Over boost and Anti-lag
  • Sensor low and high limits settings, with sensor fail defaults
  • Temperature based enrichment settings
  • Air Intake Temp Compensation
  • Selectable Voltage Injector trim
  • Staged Injection via TPS and/or MAP
  • Single or 2 stage Nitrous Oxide Control (Feature Added on 2/16/15!)
  • Lean fuel protection (Feature Added on 2/16/15!)
