Sway-A-Way 2261 Swing Axles 23 11/16"

Home > Clutches & Transmission Parts >

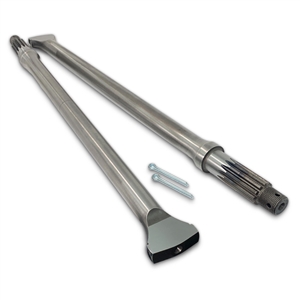

7569 Sway-A-Way 2261 Swing Axle Set - 23 11/16" Short Spline - 3" Shorter (pair)

List Price: $689.95

Your Price: $619.95

You save $70.00!

Product Code: 7569

Qty:

Email me when Back-In-Stock

Description

Sway-A-Way 2261 Swing Axles are designed for custom VW swing-axle applications requiring a 23 11/16" short-spline axle, 3" shorter than the standard 26 11/16" configuration. Sway-A-Way lists this axle for drag-car applications using a narrowed rear suspension. Manufactured from forged aircraft alloy steel, each axle is precision machined, heat treated and centerless ground for a smooth, consistent finish.

Unlike the tapered center section of a stock axle, Sway-A-Way maintains a consistent center diameter all the way to the spline. This design allows the axle to twist under heavy loads, helping absorb drivetrain shock and reduce the chance of transaxle damage.

Features & Specifications:

Sway-A-Way Part Number: 2261
Overall Length: 23 11/16"
3" shorter than the standard 26 11/16" swing axle
Spline Configuration: Short Spline
12-tooth axle spline
Forged aircraft alloy steel construction
Precision machined and heat treated
Centerless ground for a smooth finish
Non-tapered center section allows controlled twist under heavy loads
Sold as a pair

Custom narrowed VW swing-axle rear suspension applications
Drag cars, buggies and other custom builds configured for a 23 11/16" axle
23 11/16" short-spline axle configuration

Not a direct replacement for a stock-width VW rear suspension. These axles are 3" shorter than the standard 26 11/16" swing axle and require axle tubes and related rear suspension components configured for the shorter axle length. Verify the completed suspension dimensions before ordering.

This part is for swing-axle applications and is not compatible with IRS rear suspension.

VW swing-axle length and spline configuration vary by application. Custom shortened axles also require a rear suspension specifically configured for the selected axle length. Verify your existing axle and rear suspension dimensions before ordering.

CB #	SAW #	Length	Spline	Application
7569	2261	23 11/16"	Short	3" Shorter / Drag & Custom
7568	2260	26 11/16"	Short	1961-1966 VW Bug
7571	2265	27 13/16"	Short	1967 VW Bug
7572	2270	28 7/16"	Long	1968 VW Bug / Type 3 Swing Axle
