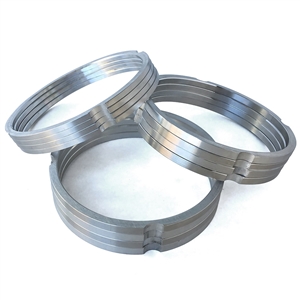

Aluminum Barrel Spacers - set of 4 (specify size)
Aluminum Barrel Spacers - set of 4 (specify size)



List Price: $85.95
Your Price: $75.95
You save $10.00!

Price with Selected Options: $75.95

Product Code: ALUMBARRELSPACERS


Size*:


Qty:
Description

For use with stroker cranks and B stroke pistons. Currently Available to fit 94mm barrels.

Lazer cut from aluminum plate and precision ground on each side to assure proper alignment of barrels and heads. The below listings will provide a guide line to selection of barrel spacer thickness. Cylinder sealing surface depth to centerline may not be consistent from engine case to engine case. Copperhead gaskets may be used to dial in the exact deck height and compression ratio.

Please specify required size in the drop-down menu above.


Deck heights are noted as negative ( pistons below top of cylinder )

1094 - 94mm x .145"
78mm Stroke with 5.500" Rods = .030" Deck Height
82mm Stroke with 5.400" Rods = .020" Deck Height

1095 - 94mm x .200"
78mm Stroke with 5.600" Rods = .055" Deck Height
82mm Stroke with 5.500" Rods = .035" Deck Height
84mm Stroke with 5.500" Rods = .055" Deck Height

1096 - 94mm x .240"
78mm Stroke with 5.600" Rods = .065" Deck Height
82mm Stroke with 5.600" Rods = .010" Deck Height
84mm Stroke with 5.500" Rods = .070" Deck Height
