CBP Pro-Series Adjustable Push Rod Tubes - Type 1 - Set of 8 (Choose Finish)

Alternative Views:

List Price: $284.95

Your Price: $246.95

You save $38.00!

Price with Selected Options: $246.95

Product Code: PSAPRT

Color*:

Qty:

Description

CB Performance Pro-Series Adjustable Push Rod Tubes were designed to solve several of the compromises commonly found with conventional adjustable push rod tubes. Their unique snap-ring adjustment system, pre-loaded spring design and use of stock-style silicone push rod tube seals provide a clean, reliable solution for stock-width and custom-width Type 1 engines.

Instead of using threaded adjusters or jam nuts, the Pro-Series design allows tube length to be preset by simply repositioning a snap ring in one of the machined adjustment grooves. Adjustment is available in 1/4" increments, covering engines from 1/2" narrower than stock to 3/4" wider than stock.

Once installed, the pre-loaded spring maintains consistent sealing pressure regardless of engine width, including the normal expansion and contraction that occurs as an air-cooled VW engine heats and cools.

Pro-Series tubes use proven stock-style silicone push rod tube seals and feature an oversized 7/8" inside diameter for increased push rod clearance. They accommodate rocker ratios up to 1.5:1, making them an excellent choice for performance street, off-road and competition Type 1 engines.

Another major advantage is serviceability. Pro-Series tubes can be installed or replaced without removing the cylinder heads. Simply remove the rocker assembly and push rod, remove the existing tube and seals, and install the Pro-Series tube according to the supplied instructions.

Features:

Made in the USA by CB Performance
Unique snap-ring adjustment system — no threaded jam nuts
Adjustable from 1/2" narrower than stock to 3/4" wider than stock
Adjusts in 1/4" increments
Pre-loaded spring provides consistent sealing pressure regardless of engine width
Uses stock-style silicone push rod tube seals
Oversized 7/8" I.D. for increased push rod clearance
Accommodates rocker ratios up to 1.5:1
Can be installed or replaced without removing the cylinder heads
Fits Type 1 upright air-cooled VW engines
Includes installation hardware and instructions
Sold as a complete set of 8

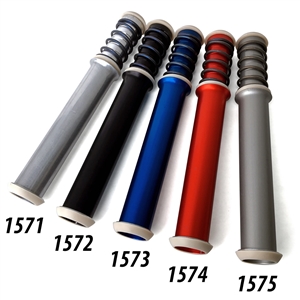

CB Part #	Finish
1571	Raw - No finish
1572	Anodized Black
1573	Anodized Blue
1574	Anodized Red
1575	PANZERWAGEN Hard Anodized

Choose your desired finish from the option menu above.

Set the snap-ring position for the required engine width before installation.
Adjustment positions cover 1/2" narrower than stock through 3/4" wider than stock in 1/4" increments.
At the -0.500" setting, no snap ring is required.
Apply a light film of oil to the inner tube so the seal can slide freely during assembly.
Install the spring end toward the engine case.
Complete Installation Instructions (pdf)

Replacement Tube: CB# 1568 Pro-Series Adjustable Push Rod Tube is also available individually in raw finish.
