6443 Single Weber 48 IDF MX Low Profile Kit with 6" tall foam filter

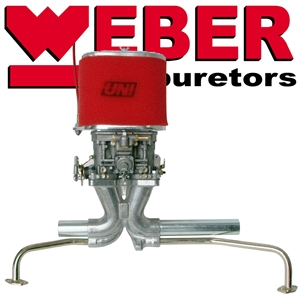

Single Weber 48 IDF MX Low Profile Kit

Alternative Views:


List Price: $899.95
Your Price: $784.95
You save $115.00!

Price with Selected Options: $784.95


Product Code: 6443

Click to view another Air Filter Top

Air Filter Top:


Qty:
Description

The Low Profile Center Section Manifold is manufactured from 356 aluminum and features full ascent heat risers to provide cold weather carburetor heat. The low height provides "Under the Deck" installation of 40, 44, and 48mm IDF Carbs. CB's exclusive cable pull linkage is included in each kit.

This is the rough country package. Double wrap tall air fillers, vented float bowl and velocity stacks feed the air/fuel charge to the Low Profile Intake System. Full ascent heat risers reduce the possibility of manifold icing and full power is maintained throughout the performance range. Choose from 40, 44, or 48mm Weber IDF's, the intake ports of the aluminum manifold are large enough to generate the flow needed to climb hills and accelerate around corners. CB Sheathed Cable Pull Linkage is supplied in each kit to give you fast, positive throttle control.



Features
  • 6" Foam Filters
  • Float Bowl Vent
  • Air Correction Jet: 1.80
  • Emulsion Tube: F-2
  • Main Jet: 1.70 (drilled)
  • Pump Jet: .50 (uses .0 bypass)
  • Idle Jet: .65
  • Venturi: 40mm
